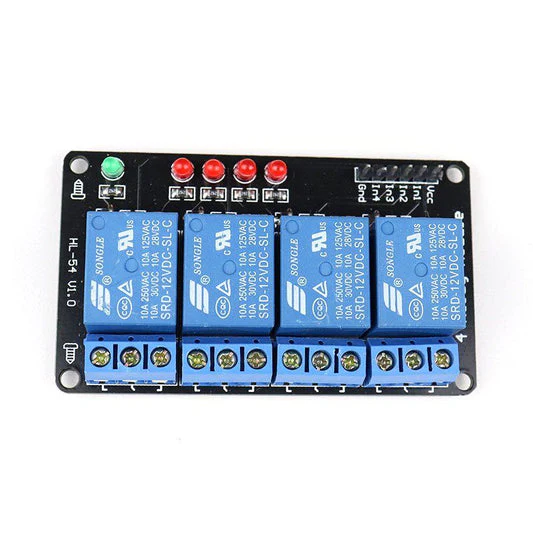

12V 4CH Relay Board
12V 4CH Relay Board
This is a 4-Channel Relay interface board that allows you to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
Features:
- 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
- Both controlled by 12V and 5V input Voltage.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
- Indication LEDs for Relay output status.
Package Includes:
1 x 4 Channel 12V Relay Module
Specifications :-
| Trigger Voltage (VDC) |
12 |
| Trigger Current (mA) |
20 |
| Switching Voltage (VAC) |
250@10A |
| Switching Voltage (VDC) |
30@10A |
| Operating Temperature (C) |
-40 to 85 |
| Opt. Relative Humidity(RH) |
20% 85% |
| Storage condition () |
65 to 125 |
| Length (mm) |
74 |
| Width (mm) |
43 |
| Height (mm) |
17 |
| Weight (gm) |
49 |
