5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface

This is a 5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface. The 5G Dongle Module Support 5G modules with M.2 (NGFF) Key B interface, suitable for SIMCom and Quectel 5G module.

Feature

• Support 5G modules with M.2 (NGFF) Key B interface, suitable for SIMCom and Quectel 5G module
• Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
• Onboard USB 3.1 Type A interface, easy to be inserted into a computer, Raspberry Pi, or Jetson Nano for 5G network
• Onboard 4-Ch IPEX 4 to the SMA antenna interface, easy to directly install and fix the antenna
• Onboard SIM card slot for NANO SIM card
• On-board power and network indicators, and multiple pads are reserved to check the working status of the module and test other functions
• PCB immersion gold process, reserved multi slots and location holes for integration
• Comes with customized aluminum alloy panel with good heat dissipation, which is nice, protective, and durable

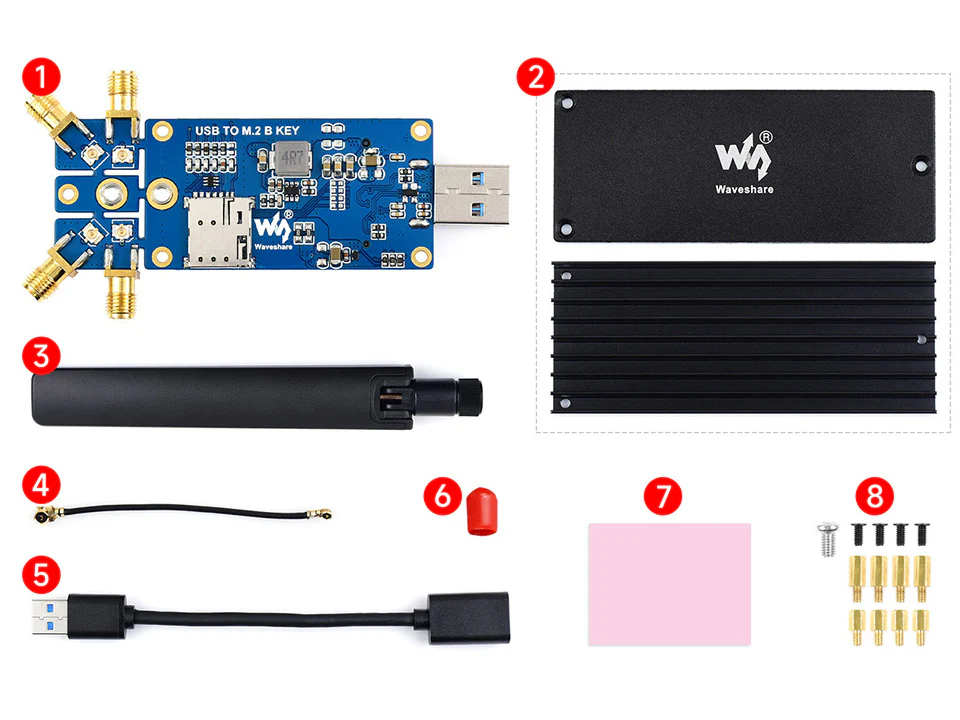

Package Includes

1. USB TO M.2 B KEY x 1
2. Aluminum Alloy case (top and bottom) x 1
3. Antenna x 4
4. IPEX adapter cable x 4
5. USB Type-A extension cable x 1
6. SMA Protective Cap x 4
7. Thermal tape x 1
8. Screws pack x 1
