Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi
Arducam B0270 12MP IMX477 IR-Cut Filter Auto Switch Camera for Raspberry Pi
Overview

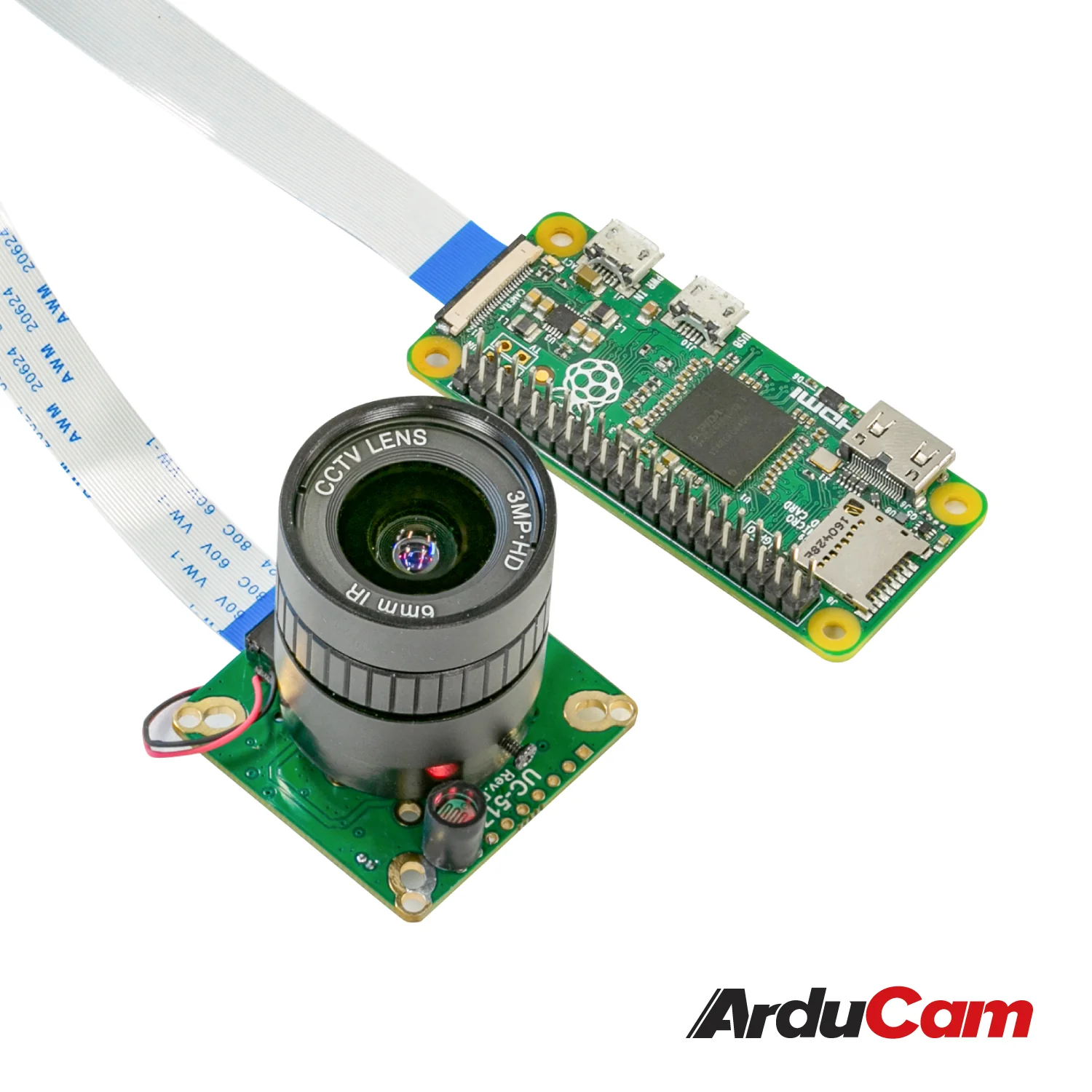

This Arducam module uses the same 12MP image sensor as the Raspberry Pi High Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light condition. The official RPi HQ camera is not sensitive to infrared, and there won’t be a NoIR version. On the contrary, this Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with all Raspberry Pi models with a camera connector.
Applications
- DSLR Camera Control
- Remote Viewing Camera
- Time-lapse Machine
- Security System
- Smart Video Doorbell
- Face Recognition
- Instant (Polaroid-Style) Camera, etc.
Specifications
Camera
| Still Resolution | 12.3 Megapixels |
| Video Modes | 2028 × 1080p50, 2028 × 1520p40 and 1332 × 990p120 |
| Sensor Resolution | 4056 x 3040 pixels |
| Sensor image area | 6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size | 1.55 µm x 1.55 µm |
| Optical Size | 1/2.3" |
| IR Sensitivity |
Switch the IR cut filter on/off automatically |
| Supported Platform | Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W |
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 6mm |
| F.NO | F1.2 |
| Field of View(FOV) | 65°(H) |
| Lens Mount | CS-Mount |
| MOD | 0.2mm |
| Back Focal Length | 7.53mm |
| Lens Dimension | Φ30×31mm |
Electrical & Mechanical
| Camera Board Size | 38 × 38mm |
|---|---|
| Hole Pitch | Compatible with 29mm, 30mm, 34mm |
| Peaking Current | 300mA |

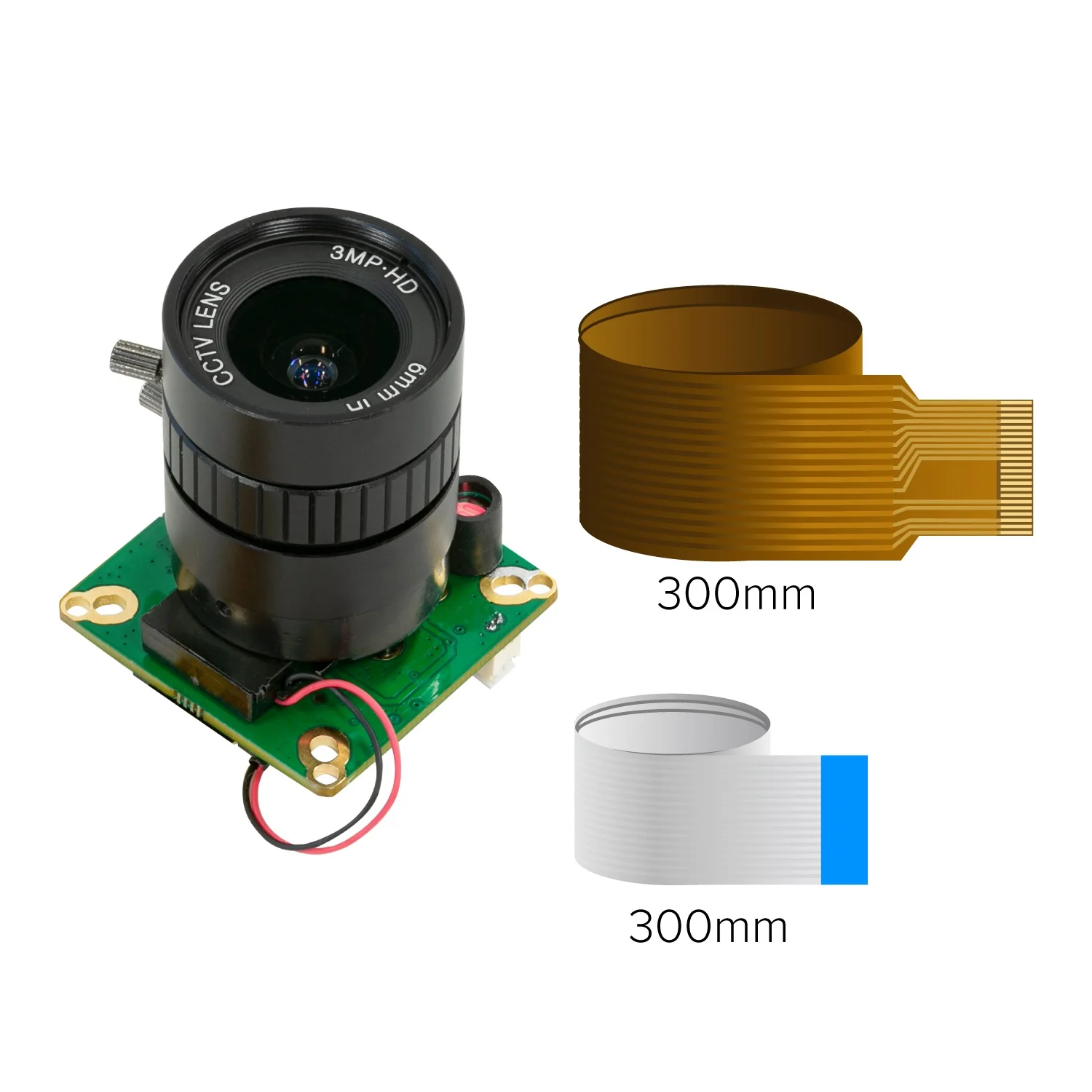

Package Including
- 1 x 12.3MP IR-CUT camera module
- 1 x 6mm focal length CS-mount camera lens
- 1 x 300mm/11.8inch 22pin FPC cable for Pi Zero&W
- 1 x 300mm/11.8inch 15pin to 22pin FPC cable for Pi A&B series
