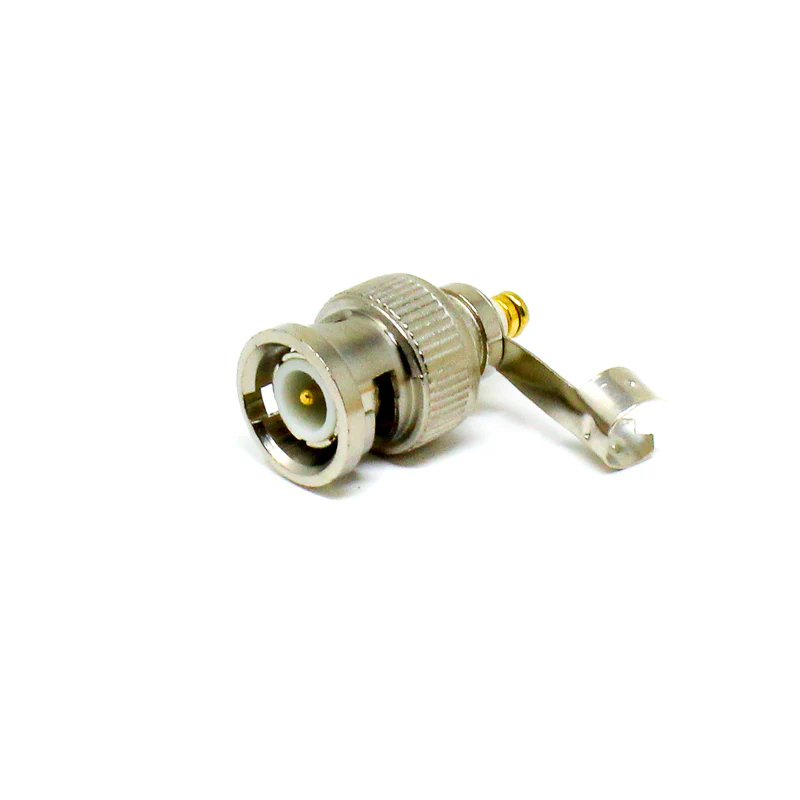

BNC Connector For CCTV Male Type With Plastic

BNC Connector For CCTV Male Type With Plastic We at robu offer, a full range of cable mount BNC/TNC and a diverse range of RF connector plugs, jacks, and bulkhead jacks. These connectors are designed to terminate to industry-standard 50-ohm and 75-ohm cables with longer life, perfect designs, and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs.

Appliance: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

---

Features:

1. BNC Connector,Straight/180°, Male Plug, Solder Type,75ohm,brass plating nickel
2. Compact Design for less installation space required;
3. Easy quick connect and disconnect coupling

---

Environmental Characteristics

1. Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
2. Coupling Nut Retention: 100 lbs. min.
3. Vibration: MIL-STD-202 Meth. 204
4. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details
