CAN to TTL Serial Communication Module  3.3V-5V

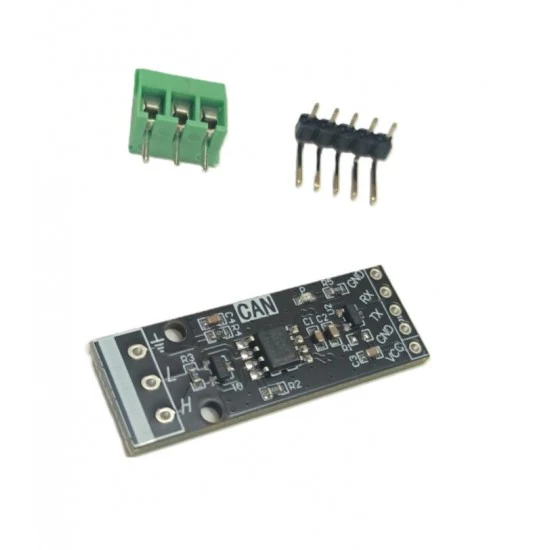

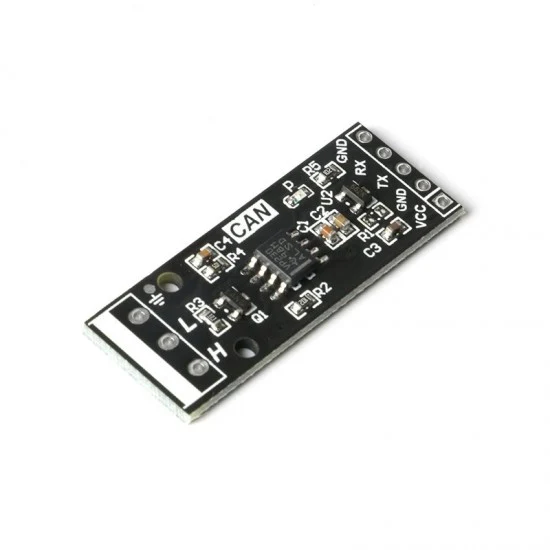

This is an CAN to TTL Serial Communication Module. The module uses a black backplane  high quality circuit board, Which Comes standard 3.50mm Screw Terminal connector on the end, on the other end has a 5pin headers. There is a power light on the board to indicate the power supply status. The onboard voltage regulator chip supports 3.3-5V wide voltage power supply.

Specifications

• Helps to connect TTL level signals
• Supply Voltage: 3.3V/5V
• Application: Computer

Pin Features

• GND : common ground connection (power supply GND can be shared)
• RX:  wiring controller RXD
• TX : connect to the controller TXD
• GND : power supply GND
• VCC : wide power supply 3.3V-5V
