Description

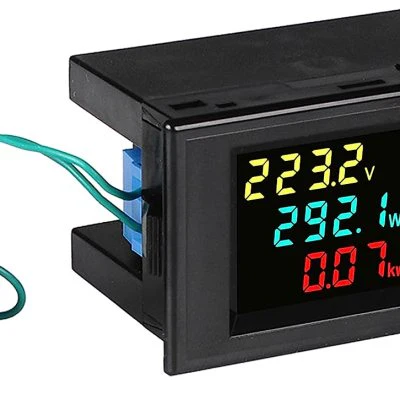

6 in 1 Energy Meter, 40V-300V AC 100A Power Meter Voltage Current Power Factor Active KWH

Active power: 0-45000W when the active power between 0 and 9999.9W, the display accuracy is 0.1W
Electric energy: 0-9 99999kwh,when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh, when between 10000.0-9999.9kwh, the display accuracy is 0.1kwh,when between 10000.0 and 999999kwh, the display accuray is 1kwh.

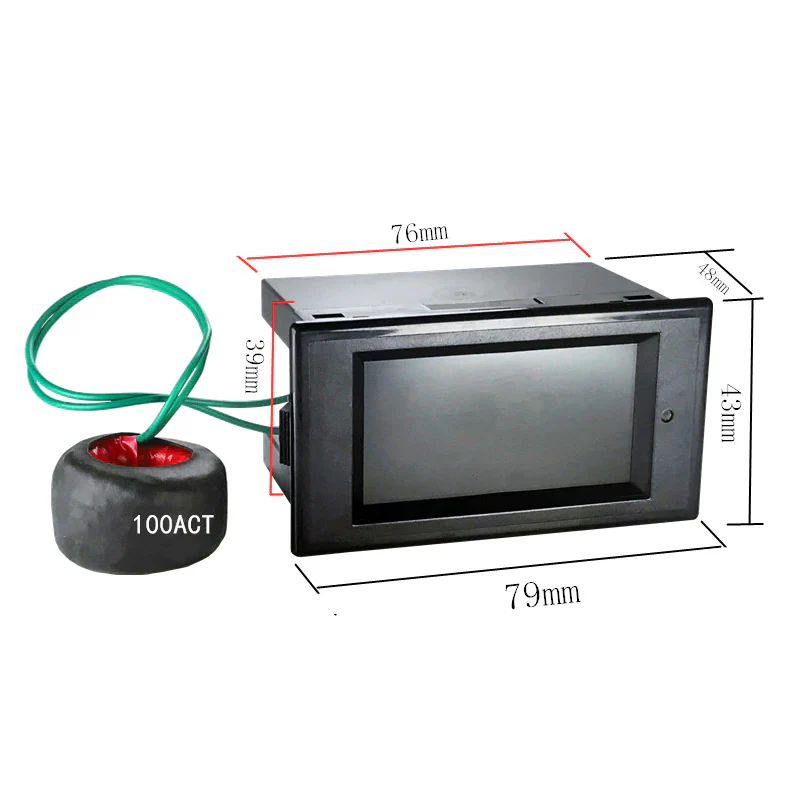

Installation Size: 76*39mm
Auto-saving: when power off, the electric energy will be saved. The saved electric energy will Be accumulated continue when the meter power-on next time.
AC voltage: AC 40.0-300.0V
AC current: AC 0-99.99A, minimum resolution is 0.01A
AC current: AC 0-40.00A, minimum resolution is 0.01A
power frequency: 45.0Hz-65.0Hz
power factor : 0.00-1.00PF
Colour: black
Material: ABS+ electronic components
Size:79*43*48mm

Package Contents:
1 x meter

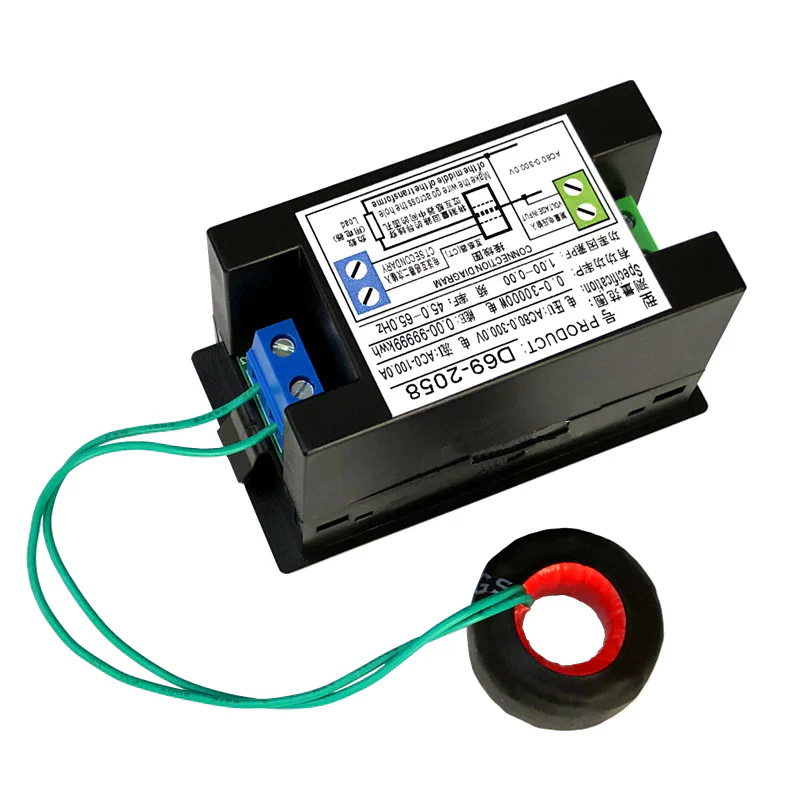

1 x CT
1 x Instruction manual
