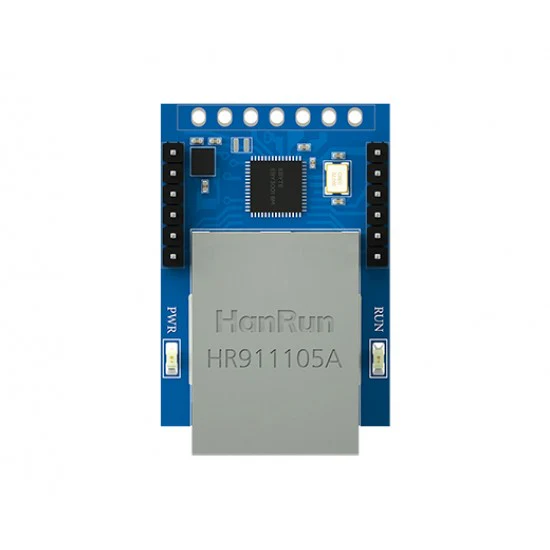

Ebyte NT1 UART Serial to Ethernet Module TTL to RJ45 Modbus

NT1 is a module (also known as a "super-gate") that enables the transmission of serial data and Ethernet data. The product comes with an RJ45 connector and a pin package. Can meet all types of TTL level serial devices,MCU networking functions.

User Manual

Features

• RJ45 supports 10M Ethernet interface
• Support multiple working modes (TCP Server, TCP Client, UDP Server, UDP Client, HTTPC, MQTTC)
• Support configuration tools, web pages and AT commands
• The server mode supports multiple socket connections
• Support multiple baud rates
• Support multiple verification (None, Odd, Even, Mark, Space) and flow control
• Support DHCP function
• DNS (domain name resolution) is supported, and the domain name resolution server canbecustomized
• DNS server address customization
• Support multiple Modbus gateways (simple protocol conversion, multi-host mode, storagegateway, configurable gateway)
• Support fast access to Alibaba Cloud, Baidu Cloud, OneNET, Huawei Cloud, and version3.1standard MQTT servers
• Support HTTP protocol (GET/POST request)
• Support virtual serial port
• Support timeout restart function and customize the restart time
• Support the short connection function and customize the short connection interval
• Support heartbeat package and registration package functions
• Support cache cleaning function
• Support access to the Internet and LAN
• Support hardware restoration to factory settings
• Support online upgrade function
