HDMI Signal Extender, 1080P High-Definition & Lossless Transmission, Transmission Distance Up To 50m Via CAT-5E/6 Network Cable

The Waveshare HDMI Signal Extender is a device designed to transmit high-definition HDMI signals over long distances up to 50 meters without any loss in quality. The device can transmit signals up to 1080p resolution, which is suitable for most high-definition displays.

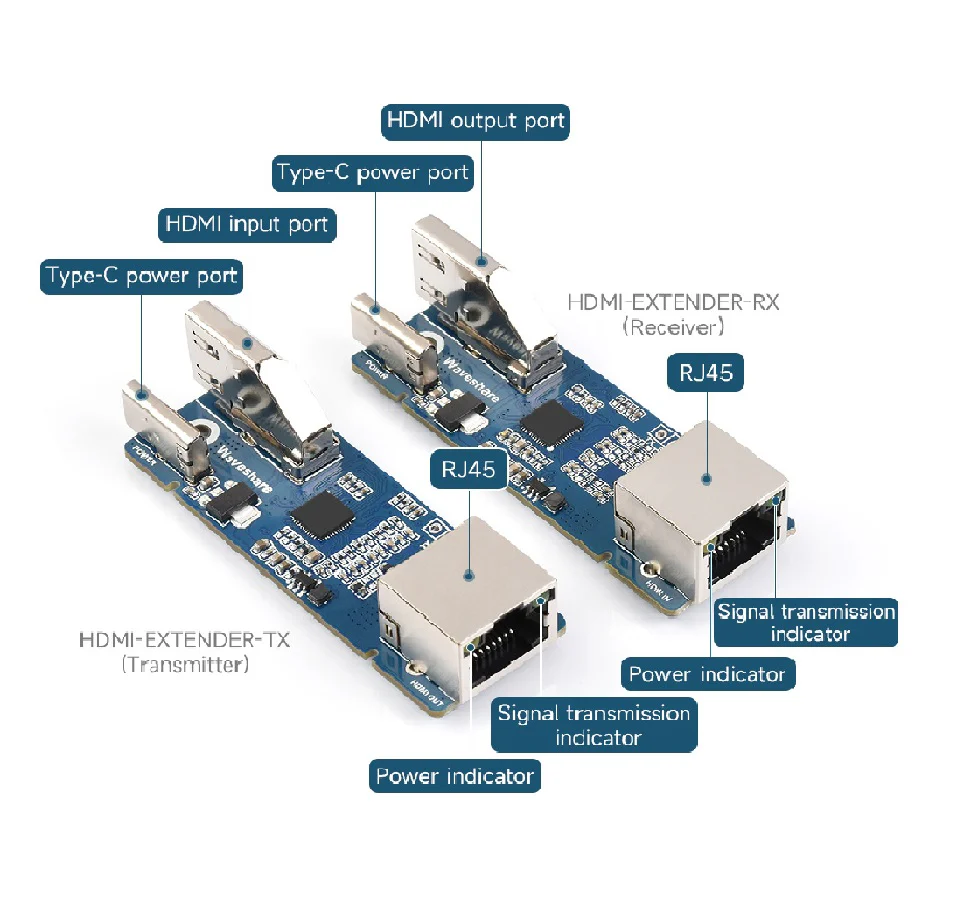

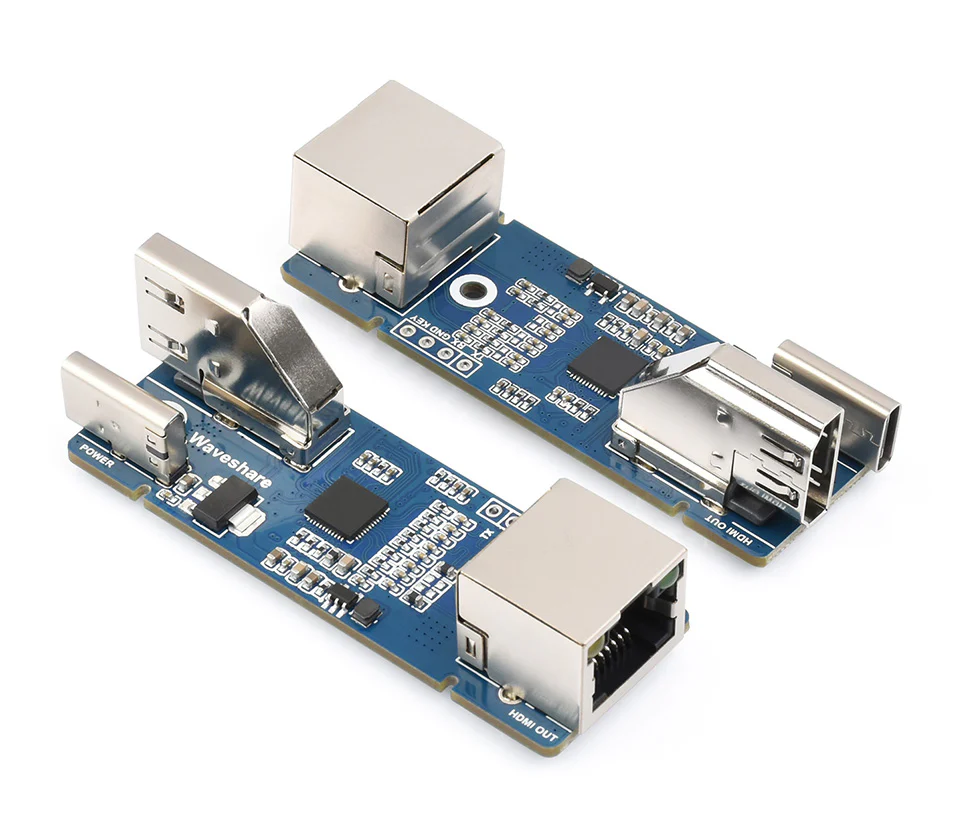

The extender consists of a transmitter and a receiver unit, which are connected using standard HDMI cables. The transmitter unit is connected to the source device, such as a Blu-ray player or a gaming console, while the receiver unit is connected to the display device, such as a TV or a projector.

---

Features:

1. Transmission standard: HDMI1.4B
2. Max. transmission distance: 50M (CAT-6 is recommended)
3. Supported resolution: 1080p/1080i/720p/576p/576i/480p/480i
4. Support color depth 10/12/16-bit mode
5. Support DVI/HDMI
6. Power input: DC 5V 1A
